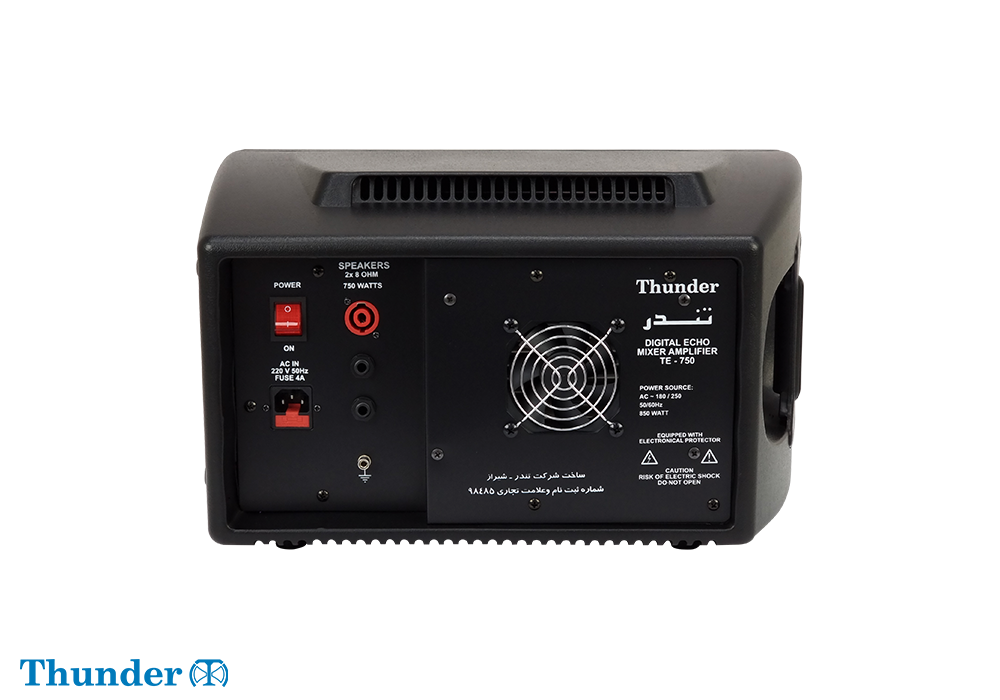

750Watt Powered Amplifier

Echo Amplifier Model TE-750

Discontinue

Specifications :

Ohm Amplifier
750 Watt Power
1 Channel Amplifier
5 Channel Mixer
Frequency Response: 25Hz-15KHz
Digital Echo with 100 Programs
MP3 with Recording and Playback Capability for Various Audio Files
FM Radio and Remote Control
Equipped with Recorder and Bluetooth
Ability to Play Various Audio Files via USB and SD Card
Equipped with Short Circuit, Overload, and DC Output Voltage Protection
Toroidal Transformer
Separate Input and Output for Recording, RCA Jack
AUX Output for Connecting to Another Amplifier or Audio Monitor with Volume Control
Grounding Option for Simultaneous Use of Multiple Microphones

Technical Specifications :

System Type	1 Channel Amplifier
Power	750 W
Mixer	5 Channel with 2-Band Equalizer
Microphone Input	6 Microphone Inputs
Free Input	4 Free AUX Inputs

Amplifier Channel	1 Channel
Microphone Input Sensitivity and Impedance	-60 dB , 3 kΩ
AUX Input Sensitivity and Impedance	-15 dB , 100 kΩ
Input Noise Balance Ratio	-120 dB
Signal-to-Noise Ratio	>95 dB
Distortion	>0.01%
Treble Frequency Control	±10dB at 900Hz-20KHz

Bass Frequency Control	±10dB at 20Hz-900Hz
Recording Input	-22 dB
Recording Output	-10 dB
Delay Time	100 ms - 1000 ms
Output Signal-to-Noise Ratio	108 dB
Digital Effect	100 Programs
Reverb	1 sec. - 10 sec.
Dimensions	W27 - D44 - H27.5 Cm
Weight	Kg 10.15
MP3	✓
FM Radio	✓
Bluetooth	✓
USB	✓
Mointor out	✓
