Specifications :
Frequency Division , Equalizer , Delay , Anti-Feedback
Noise Gate , FIR Filter , DEQ , Compressor , and Limiter
- Front panel with simple design and easy operation

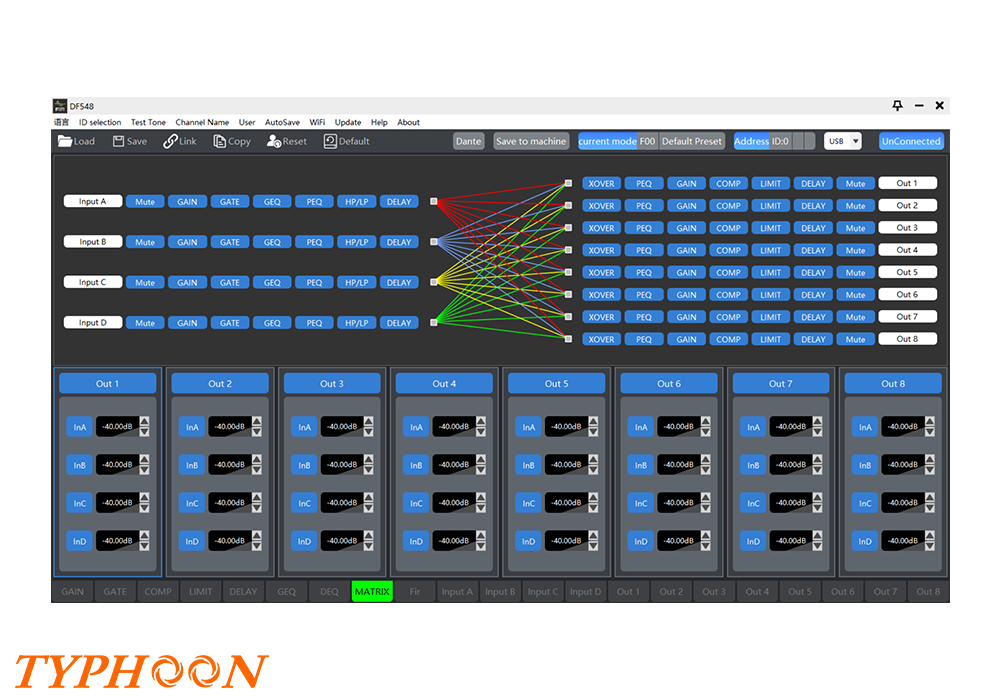

- Ability to assign any input to any output (Matrix)
- Programmable and controllable via the front panel or computer

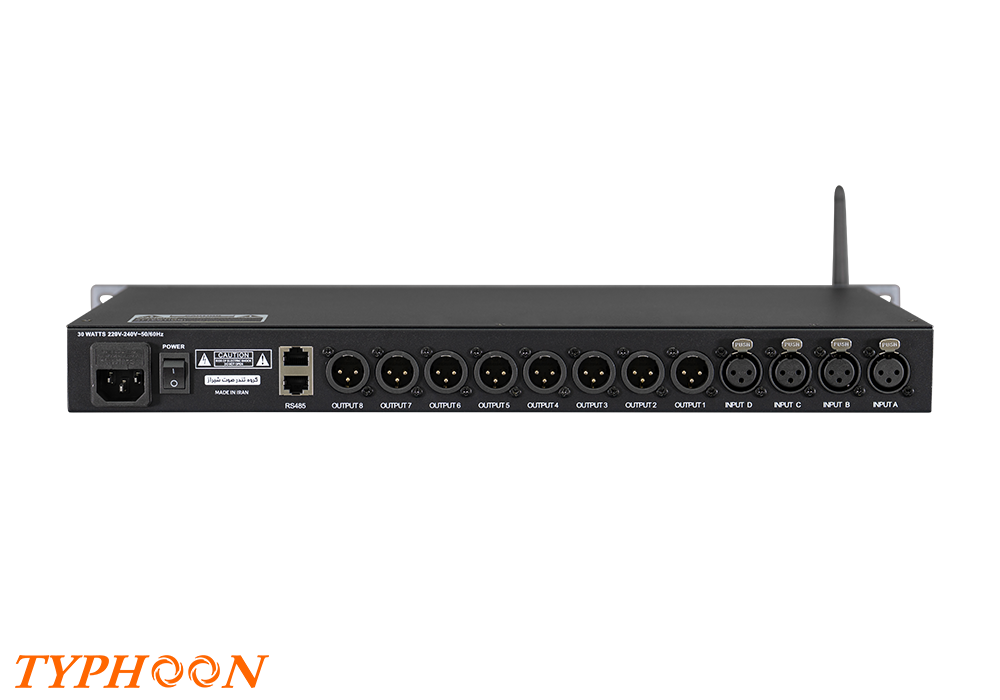

- Equipped with 4 balanced XLR inputs and 8 balanced XLR outputs
- Parametric filters and compensators with feedback control limiter
- Supports various filters with slopes from 6dB to 48dB per octave
- Independent limiter for each output with input and output delay (250+500 ms)
- 48KHz - 32Bit DSP Processor with 24 Bit AD/DA converter

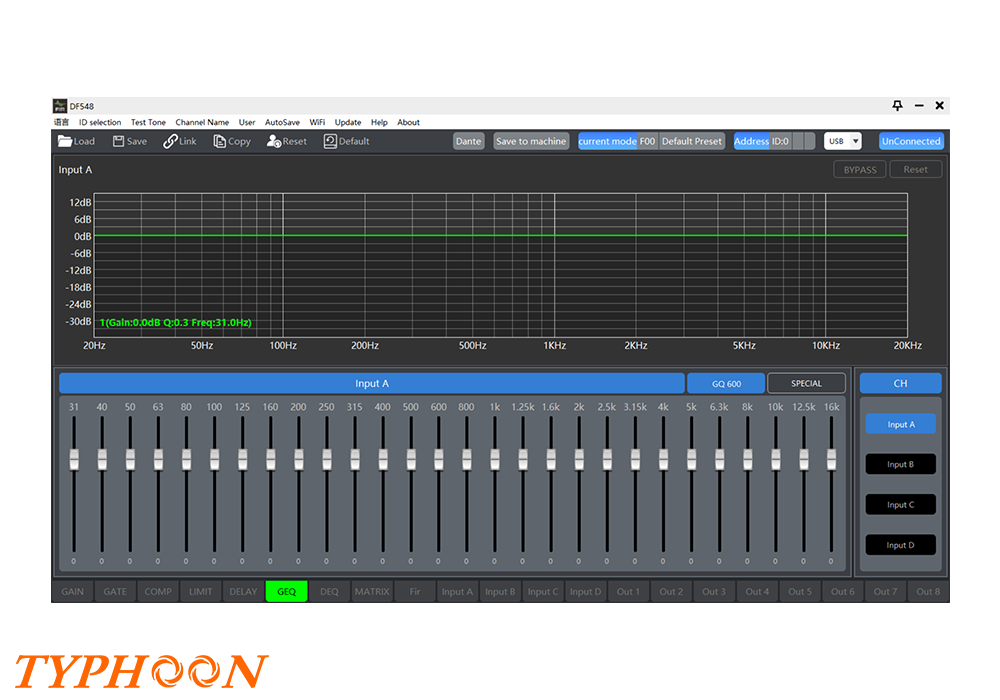

- 31-segment graphic equalizer (G/DEQ) for input to customize system frequency response

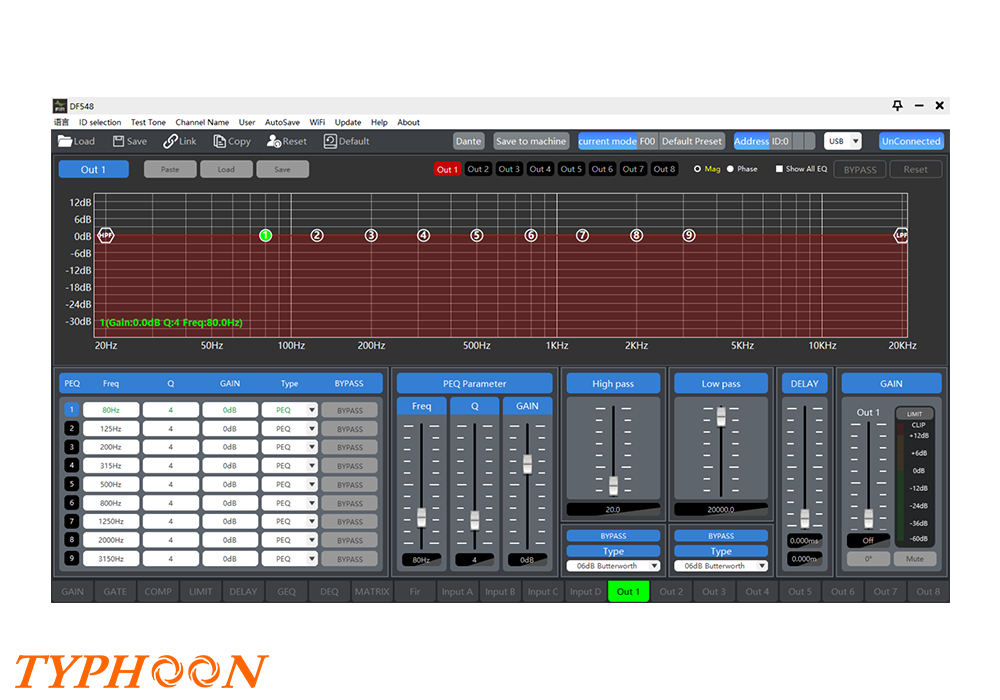

- 8-segment parametric equalizer (PEQ) for input and 9-segment (PEQ) for output for precise segment tuning
- Pre-division delay capability to synchronize sound system with stage position
- Supports mono or stereo subwoofer with 6-part display for input and output
- Security lock for input and output mute buttons via the front panel (User Lock)
- Ability to save up to 50 user-defined presets
- Supports full crossover for frequency range
- Generates white noise , pink noise , and sine wave
- User-friendly LCD display
Technical Specifications :
| System Type |
Audio DSP Processor |
| Frequency Response |
20Hz-20KHz ±0.3dB |
| Dynamic Range |
20Hz-20KHz , >110dB |
| Harmonic Distortion + Noise |
20Hz-20KHz +10dBu 1KHz, <0.005% |
| Equivalent Input Noise |
-90dBu > |
| Sampling Rate |
48KHz |
| Signal-to-Noise Ratio (SNR) |
20Hz-20KHz ,110dB < |
| Channel Crosstalk |
-110dB > |
| Processing Module Configuration |
24bit PCM |
| Input Equalizer |
GEQ with 28 segment and PEQ with 8 segment |
| Output Equalizer |
PEQ with 9 segment |
| Input Delay |
250 ms per channel |
| Output Delay |
500 ms per channel |
| Number of Inputs |
4 Balanced Inputs |
| Number of Outputs |
8 Balanced Outputs |
| Input Impedance |
18 kOhms |
| Output Impedance |
20 Ohms |
| Maximum Input Level |
20 Ohms dBu (±0.2 dBu) |
| Maximum Output Level |
20 Ohms dBu (±0.2 dBu) |
| Processing Delay |
< 2.33 Ms |
| Dimensions |
483 - 45 - 200 MM |
| Power Consumption |
< 30 W |
| Weight |
1 Kg |
