4Channel Digital Power Amplifier

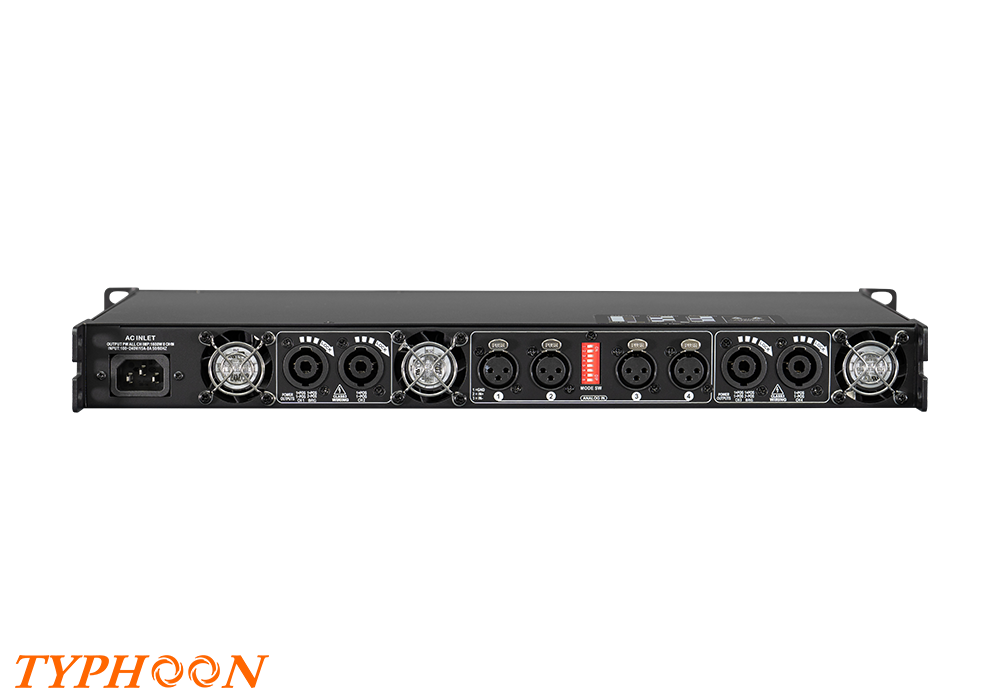

Typhoon 4-Channel Digital Power Amplifier

  • 3200 Watts Of Power
  • 4 Separate Channels
  • Up-to-date Features and Standards Including SRM, PFC, ...

​​​​


Specifications :

  • New generation of class D amplifiers
  • 4 separate amplifier channels with 800 watts of power
  • Amplifier with European green sound system standards
  • 4 input and output channels
  • Variable frequency power supply technology
  • Smart audio track management (SRM)
  • Power factor correction (PFC)
  • Automatic load resistance detection
  • Hardware circuit protection
  • High-quality and transparent sound

Technical Specifications :

 Technical specifications 4-channel digital power amplifier
 Maximum output power (100V) 800 W x 4
 Maximum output power per channel (8 ohms) 800 W
 Maximum output power per channel (4 ohms) 800 W
 Maximum output power per channel (2 ohms) 600 W
 Maximum power in Bridge mode (8 ohms) 2400 W x 2
 Typical distortion (8 ohms) 0.02 %
 Maximum distortion  < 2%
 Frequency response 20Hz - 20Khz
 Noise (32 dB) < 1 mv
 Damping factor (at 8 ohms) 5000
 Output circuit CLASS D (Generation 4)
 Input sensitivity 1.5 V
 Maximum Gain (1.2V setting) 32 dB
 Maximum input level 20 dB
 Input voltage 85-265V
 Input connector Balance entry XLR
 Output connector Speakon
 Restrictive settings Peak limiter, RMS voltage and RMS current
 Amplifier protection Protection against out-of-range voltages, dangerous signals, DC output, over-temperature, short circuit
 Cooling system Variable speed fan air cooler
 Nominal voltage 110-240V ~ 50/60Hz
 Fuse 10 A
 Dimensions 489 - 407 - 45 mm
 Weight 8.8 Kg
